A football ground: two offices, the covered stand and the scoreboard, joined by fibre.
The carrier's line reached one corner of the ground. From there we built three fibre sections: two at 10 Gb/s, joining the training offices to the administrative office and to the covered stand, and a third that carries the audiovisual signal to the scoreboard. Two of them cross by air, hung from the floodlight towers.
Five points, with photos of each. Select one here or on the drawing.
Where the carrier's line lands: its distribution cabinet. From here one fibre goes into the first rack.
A wall cabinet inside the training offices. The carrier's line arrives here and two sections leave, both at 10 Gb/s: one to the administrative office, one by air to the covered stand.
The administrative office. The section from Rack 1 links it to the training offices at 10 Gb/s and ends here in a small termination box.
The covered stand. The 10 Gb/s section from Rack 1 comes in by air from the south-west tower and ends in a termination box with LC connectors; the audiovisual fibre to the scoreboard leaves from here.
By air from the stand to the south-east tower and on to the north-east tower. From there it runs along the edge of the terrace, climbs a leg of the scoreboard frame and is fusion-spliced into a termination box. This fibre is not an internet connection: it carries the audiovisual signal between the stand and the scoreboard.
- ISPISP → Rack 1The carrier's line, from its cabinet into the first rack.
- 01 · 10 Gb/sRack 1 → OfficeJoins the training offices to the administrative office.
- 02 · 10 Gb/sRack 1 → Rack 2By air: offices to the south-west tower, tower to the covered stand.
- 03 · AudiovisualRack 2 → ScoreboardNot an internet link: it carries the audiovisual signal. By air to the south-east and north-east towers, then along the edge of the terrace and up a leg of the scoreboard.
All three sections use 4-core fibre cable: two cores active, one to transmit and one to receive, and two kept as backup.
Outer sheath
Aramid yarn
Four fibre units
Buffered fibre
Materials
What the links are made of.
Four fibres in every cable. One pair carries the link; the second is already laid, ready to take over.

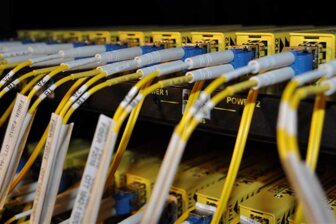

The switching that lights the fibre: 10 Gb/s between the buildings.

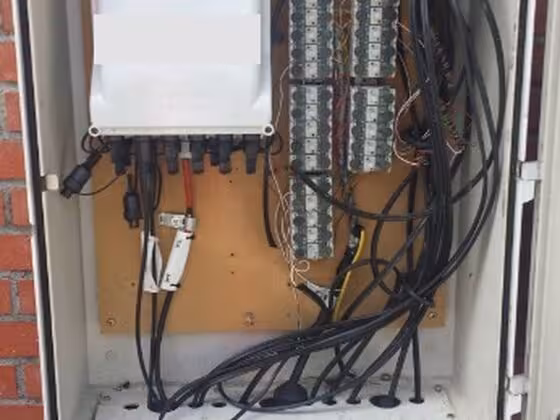

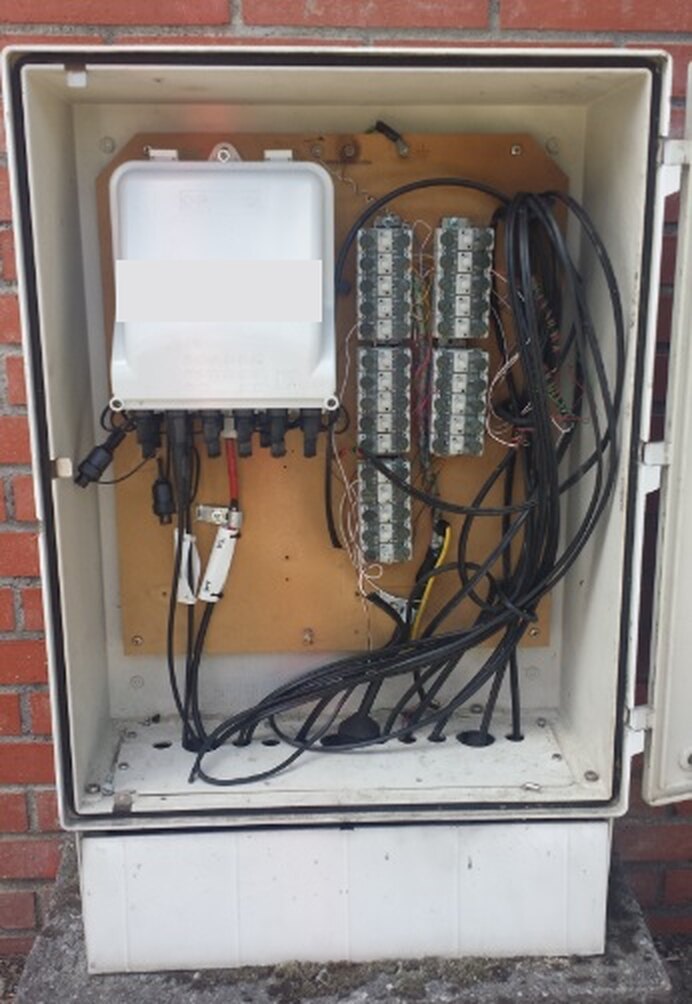

The carrier's distribution cabinet, open

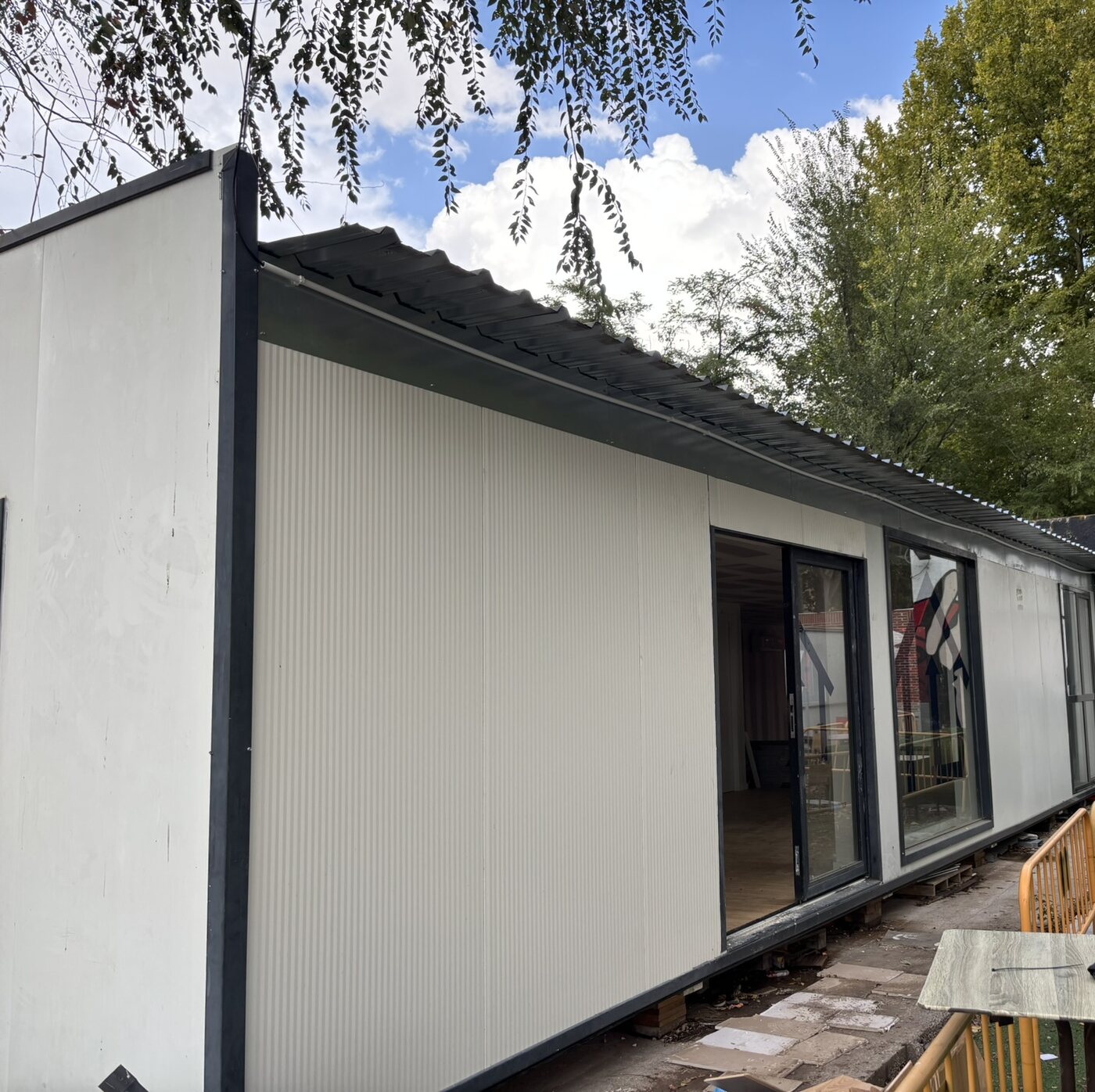

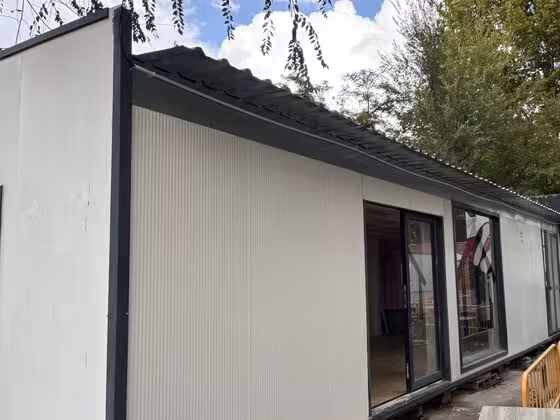

The office cabins

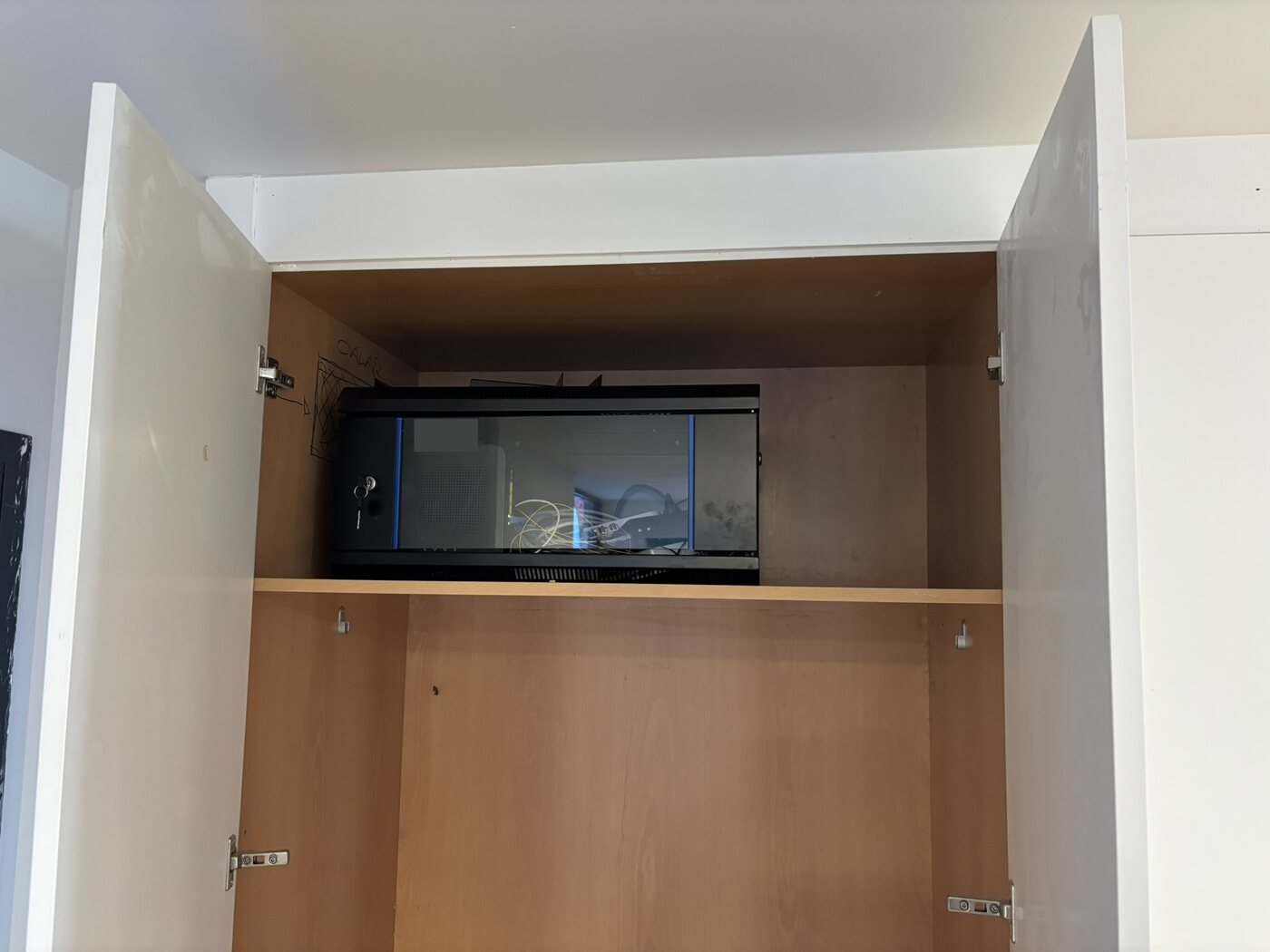

Wall cabinet fitted inside a cupboard

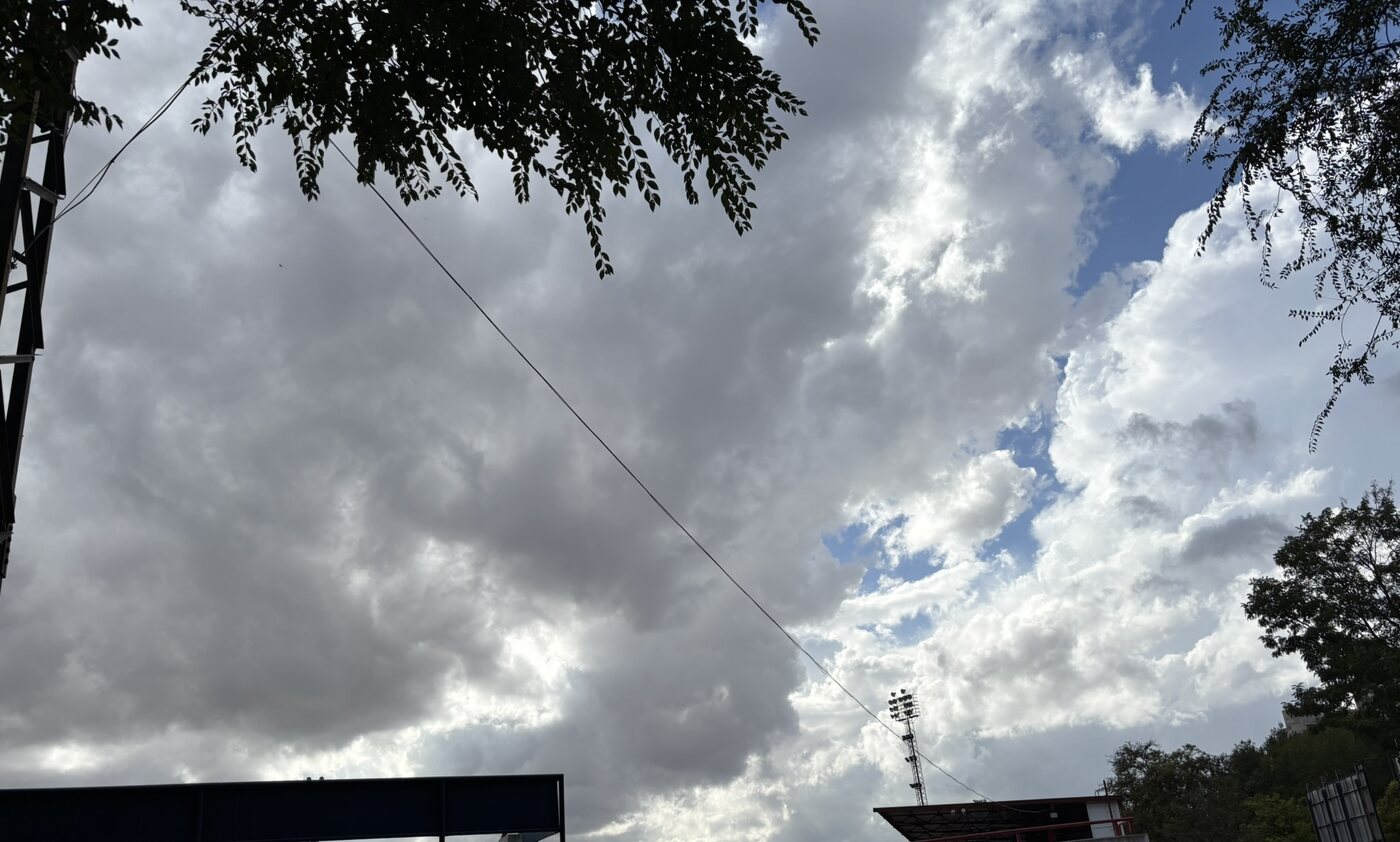

The aerial span leaving the cabins for the floodlight tower

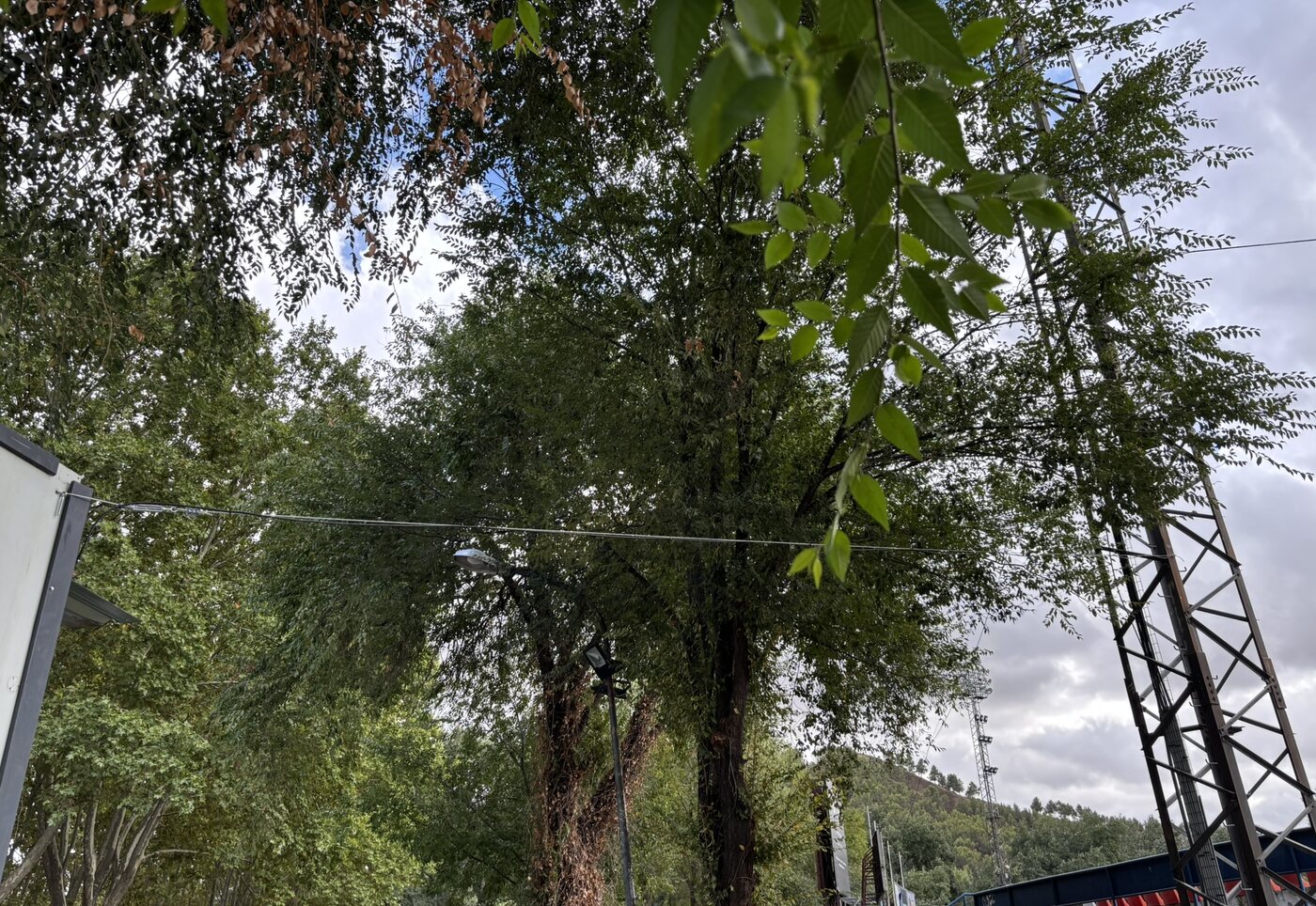

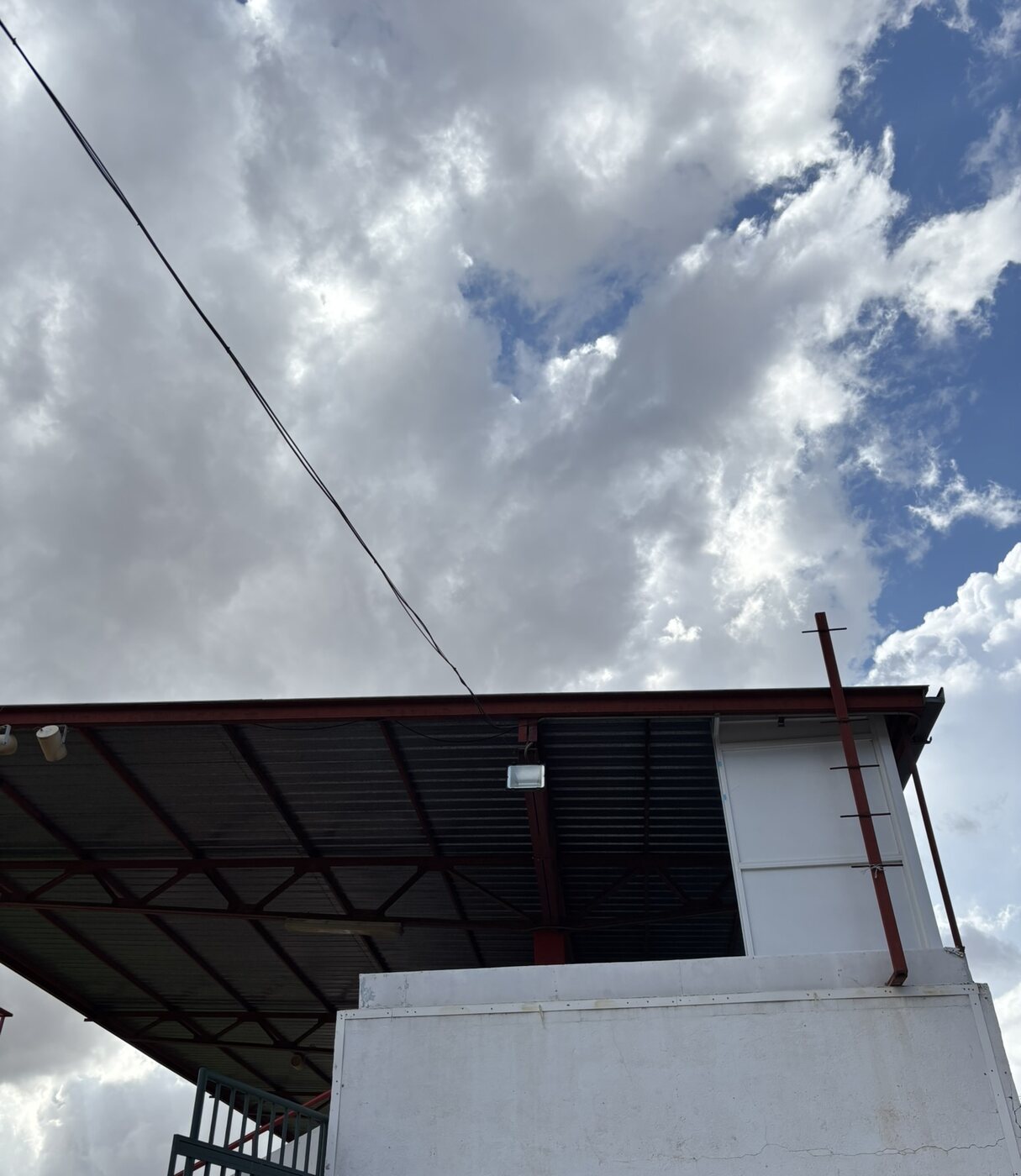

The span on its way to the covered stand
Arriving under the roof of the covered stand

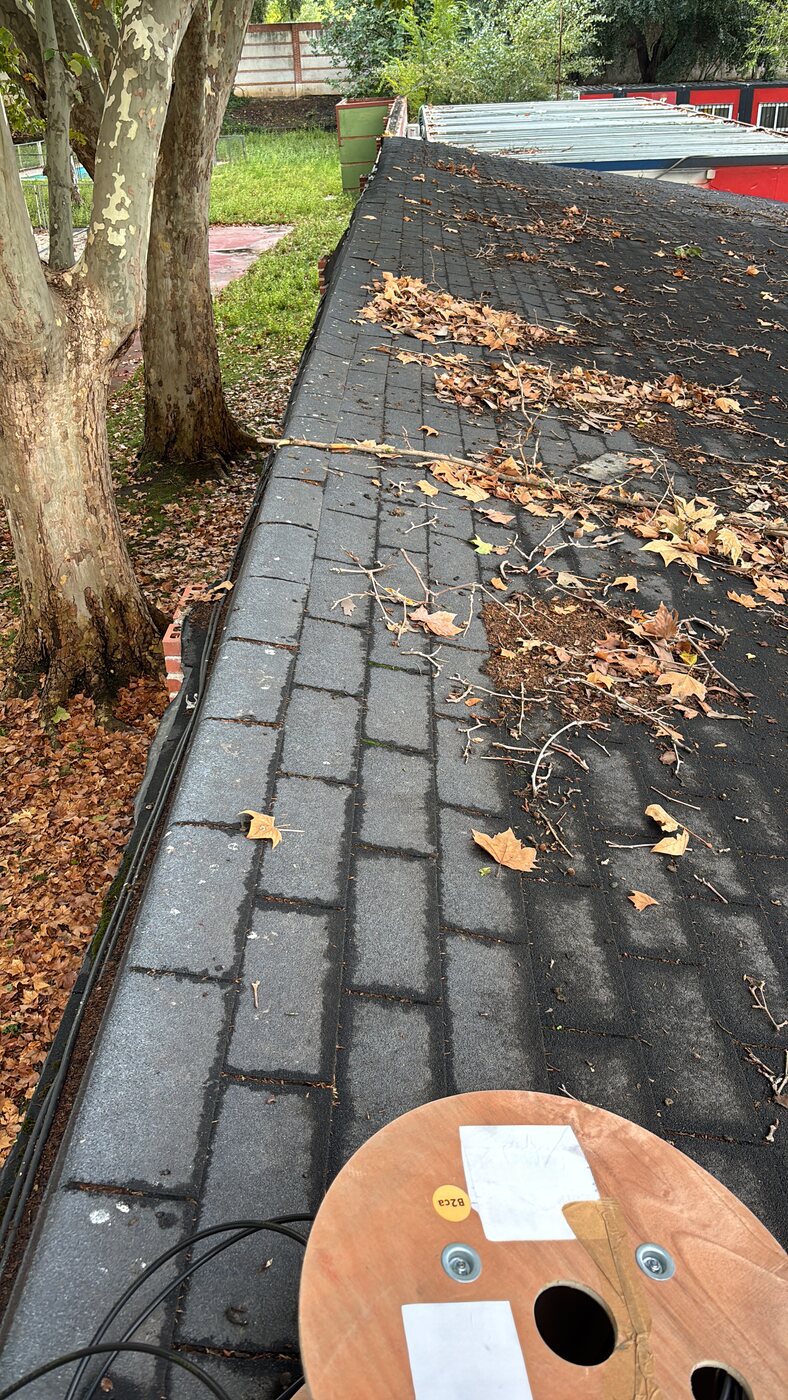

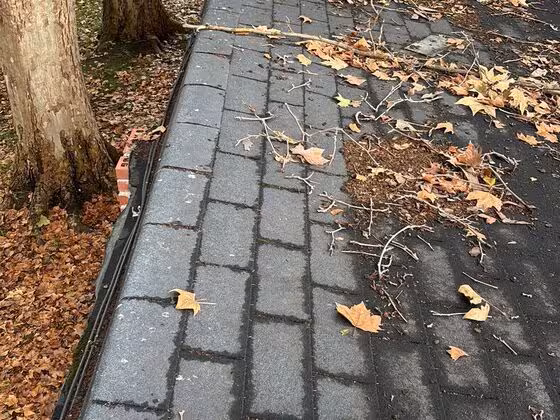

The cable laid along the roof edge during the pull

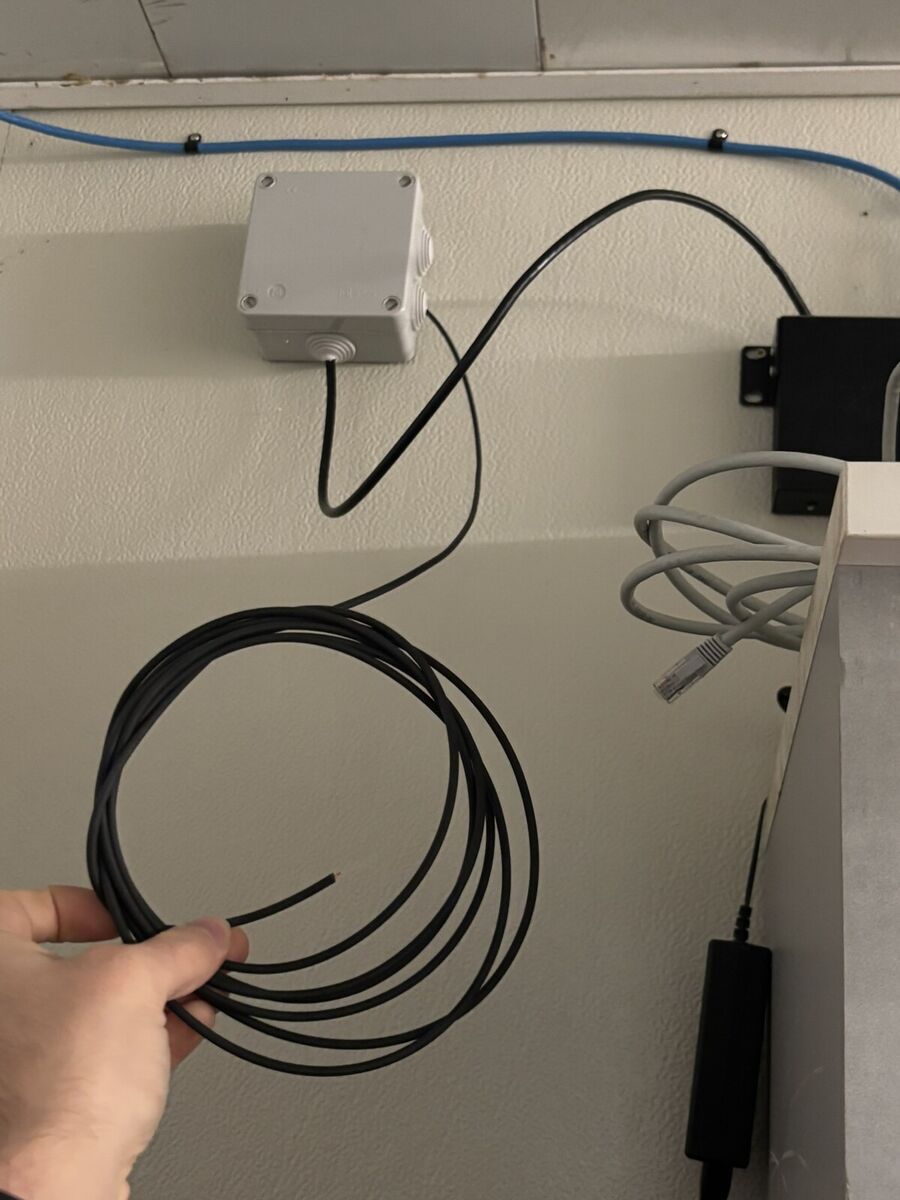

Termination box and the spare length left coiled
Inside the finished office

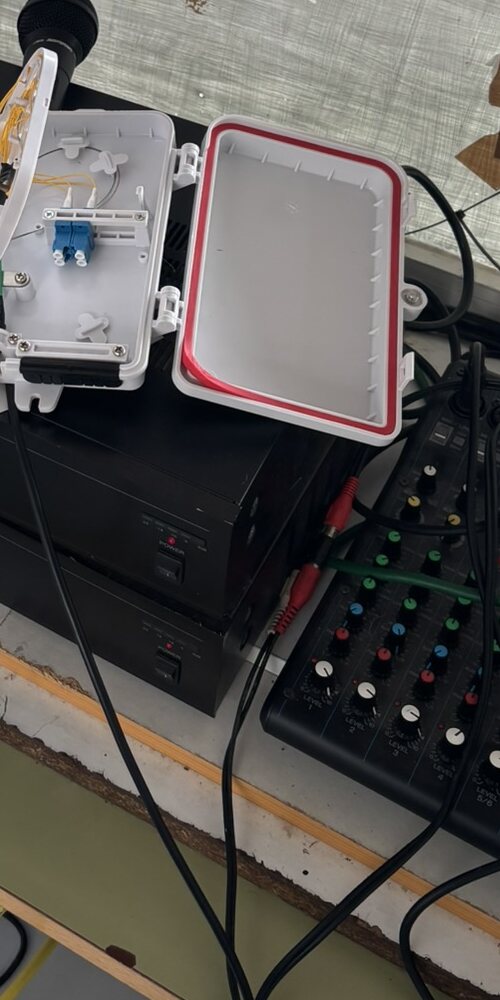

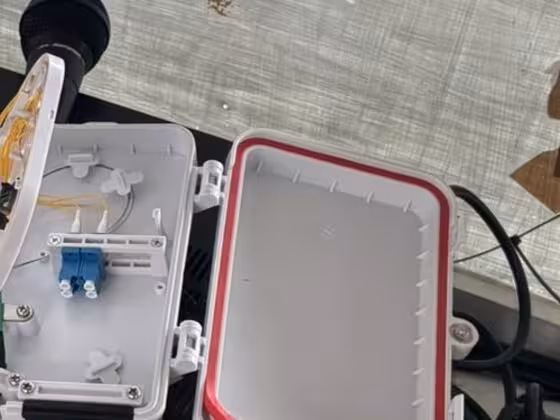

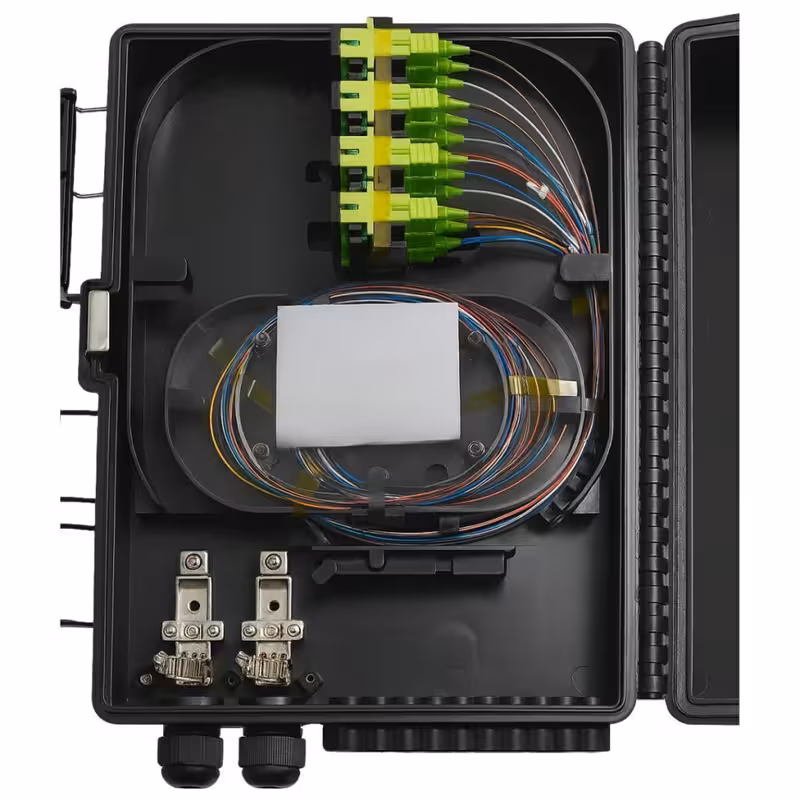

Termination box open: splice tray and LC connectors

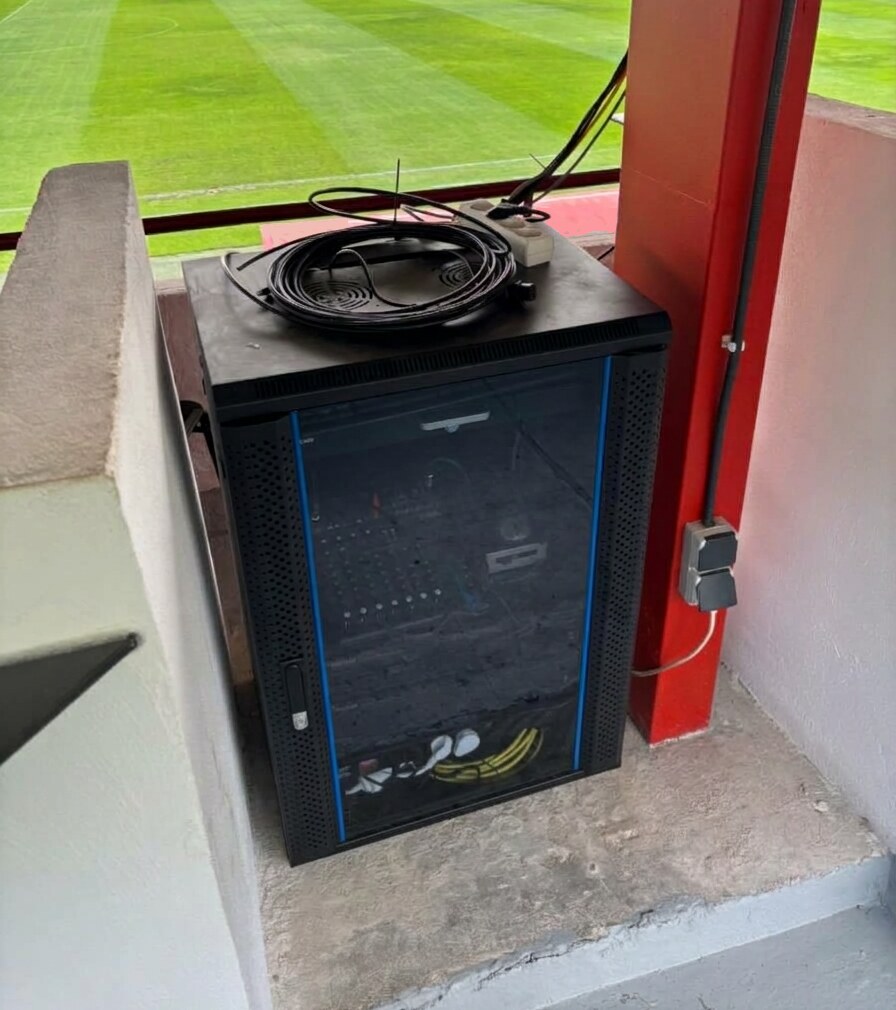

Floor cabinet in the covered stand

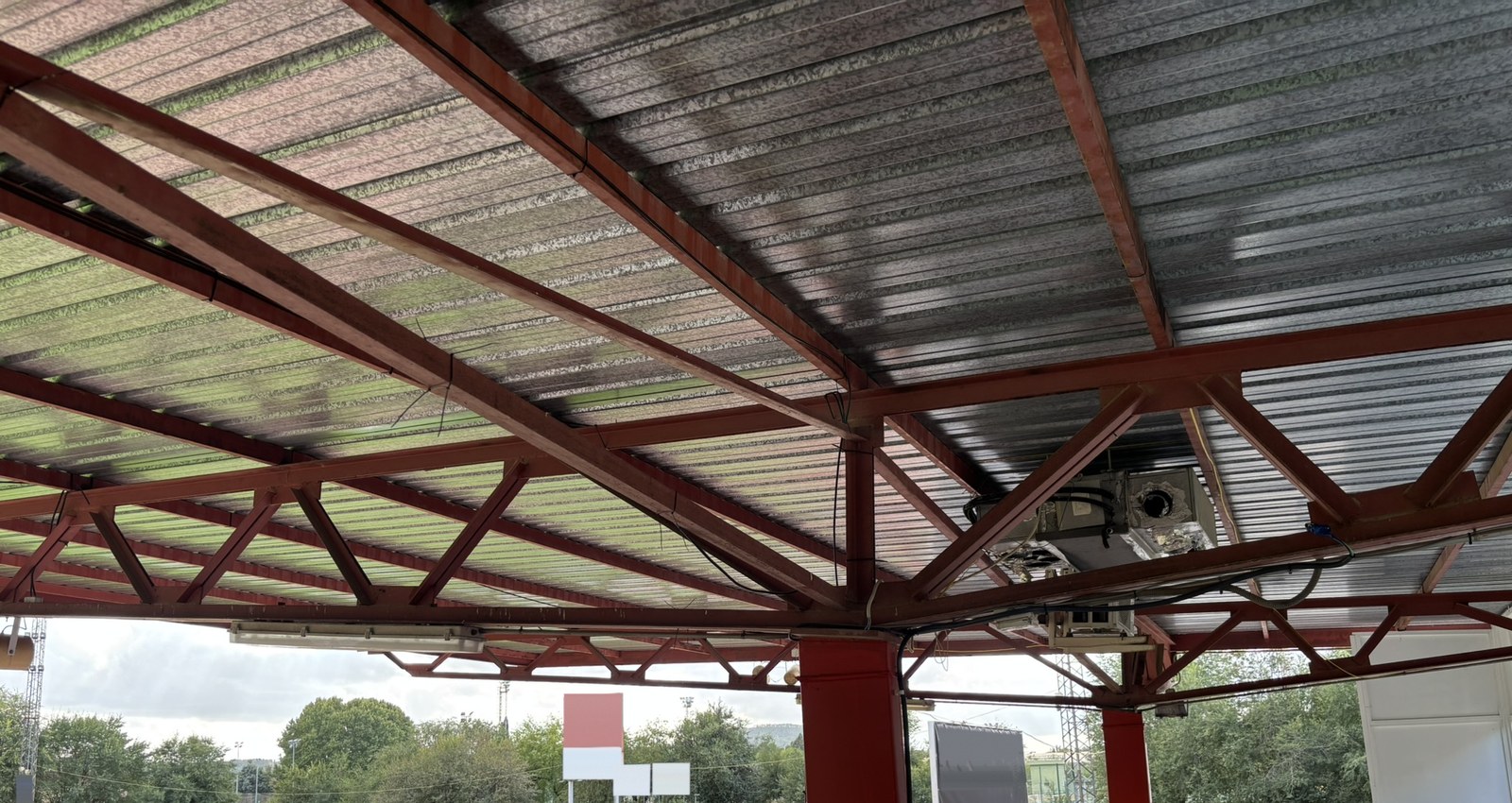

Under the roof of the covered stand, with the scoreboard across the pitch

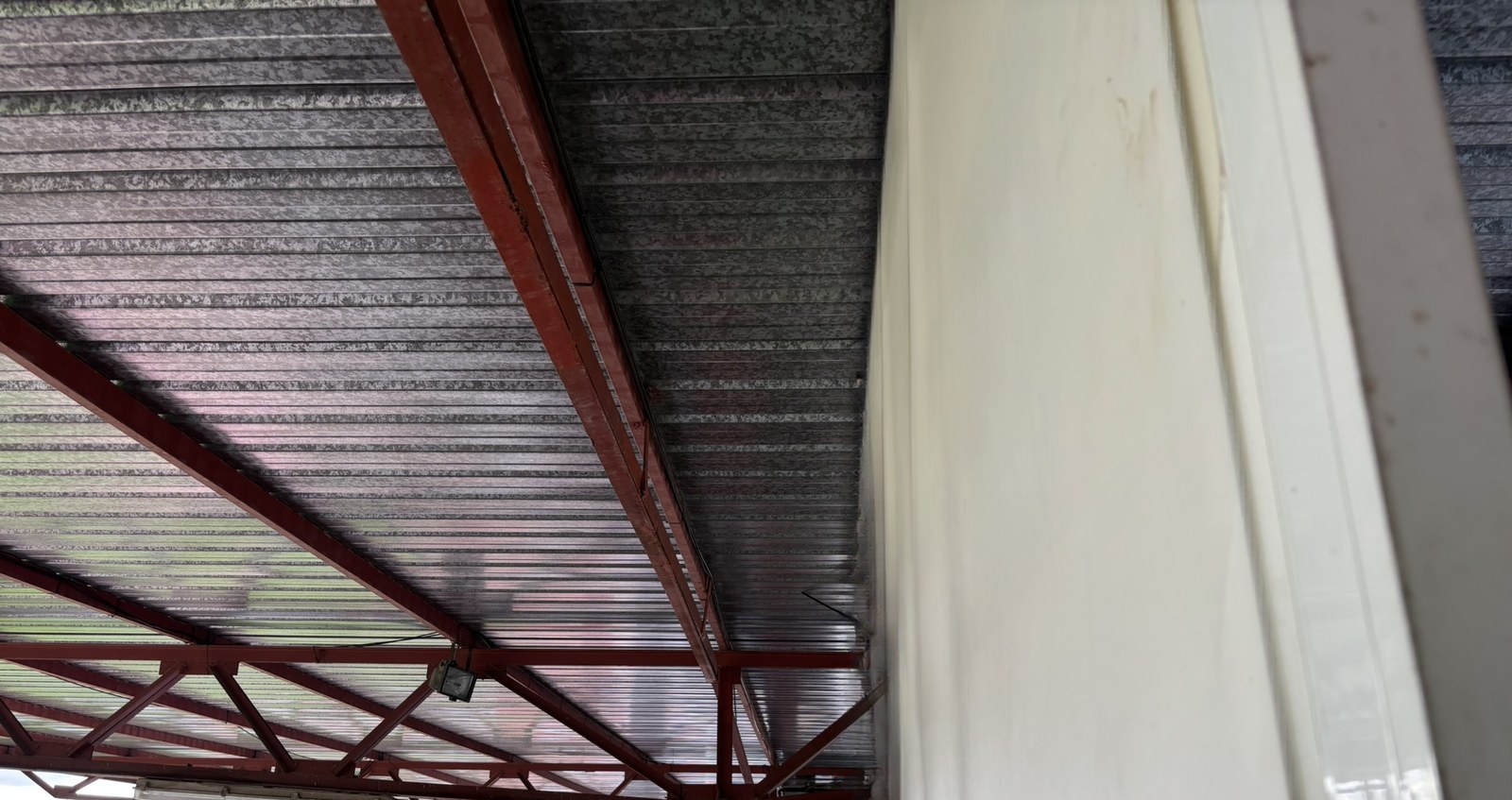

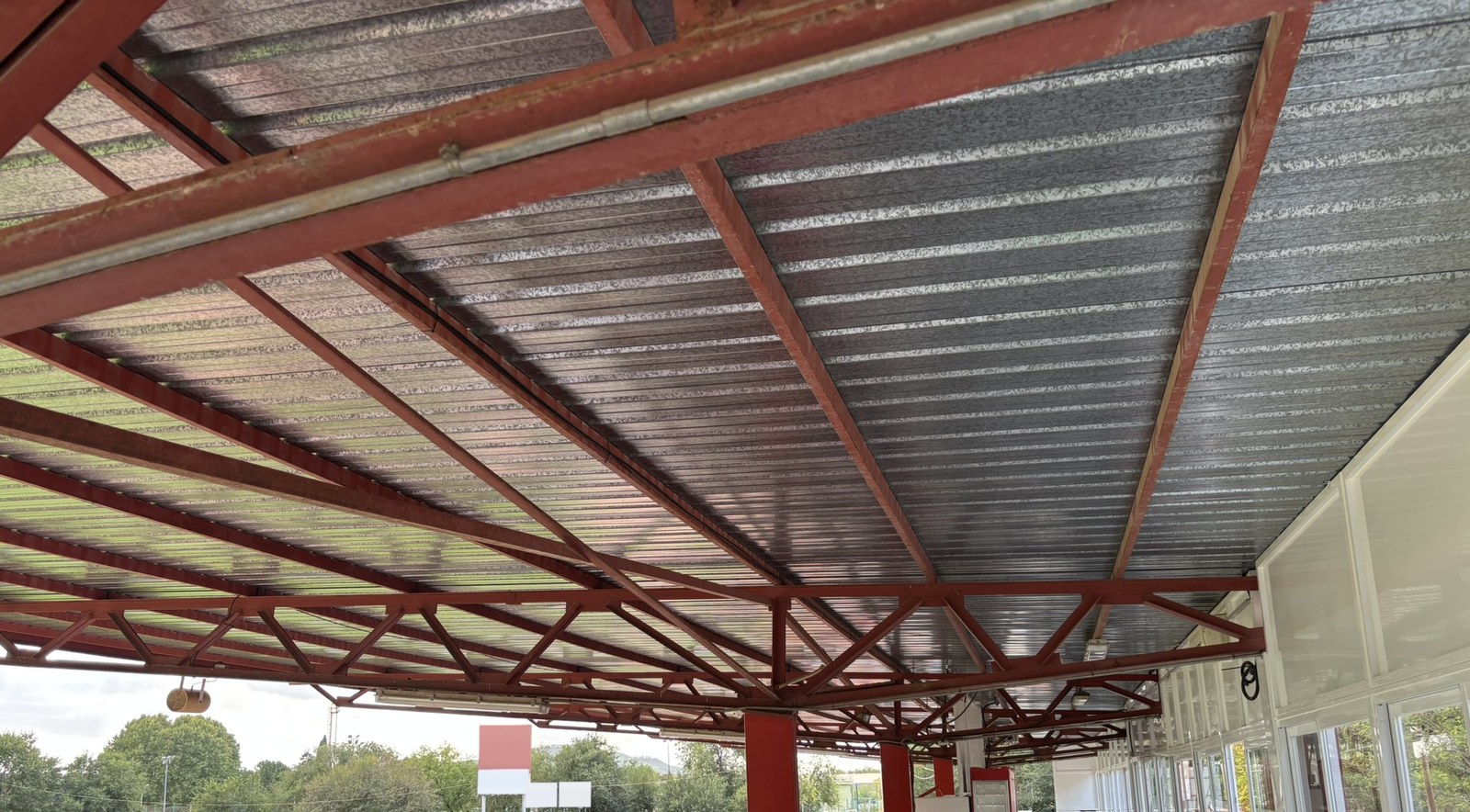

The roof structure the cable follows
Along the wall of the cabins

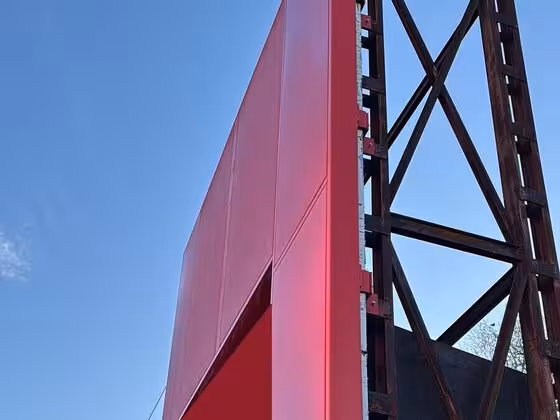

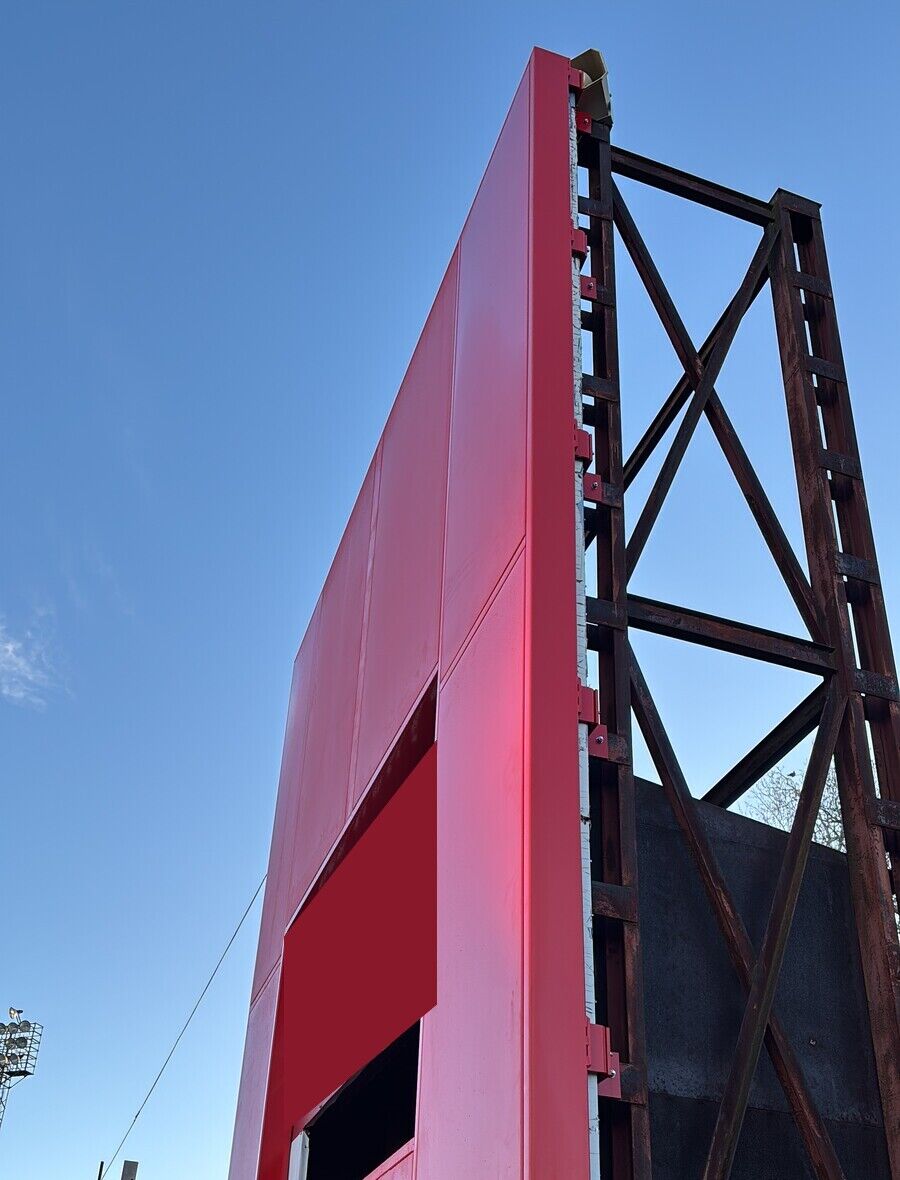

The scoreboard on its steel frame

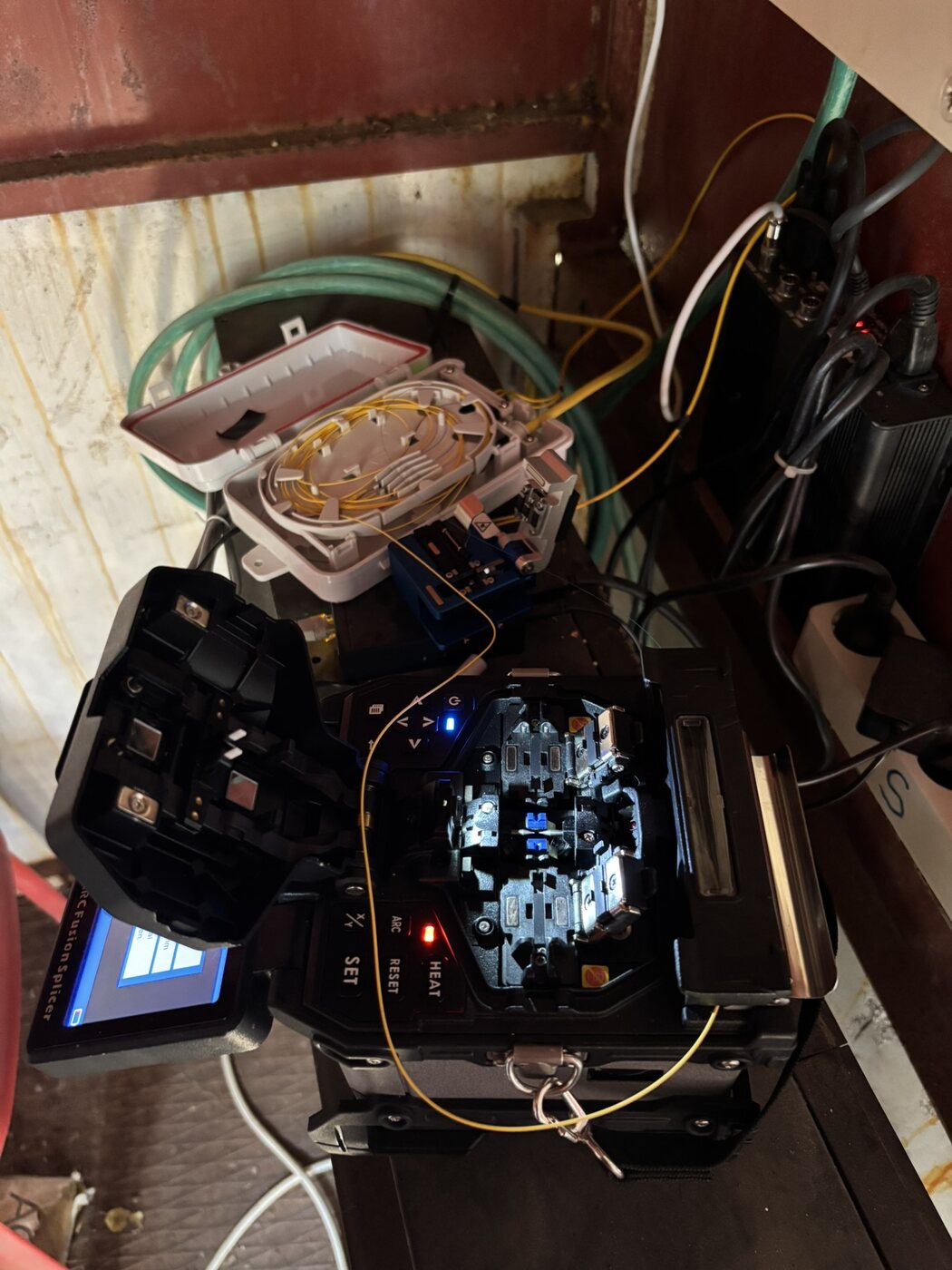

Fusion splicing the fibre into the termination box

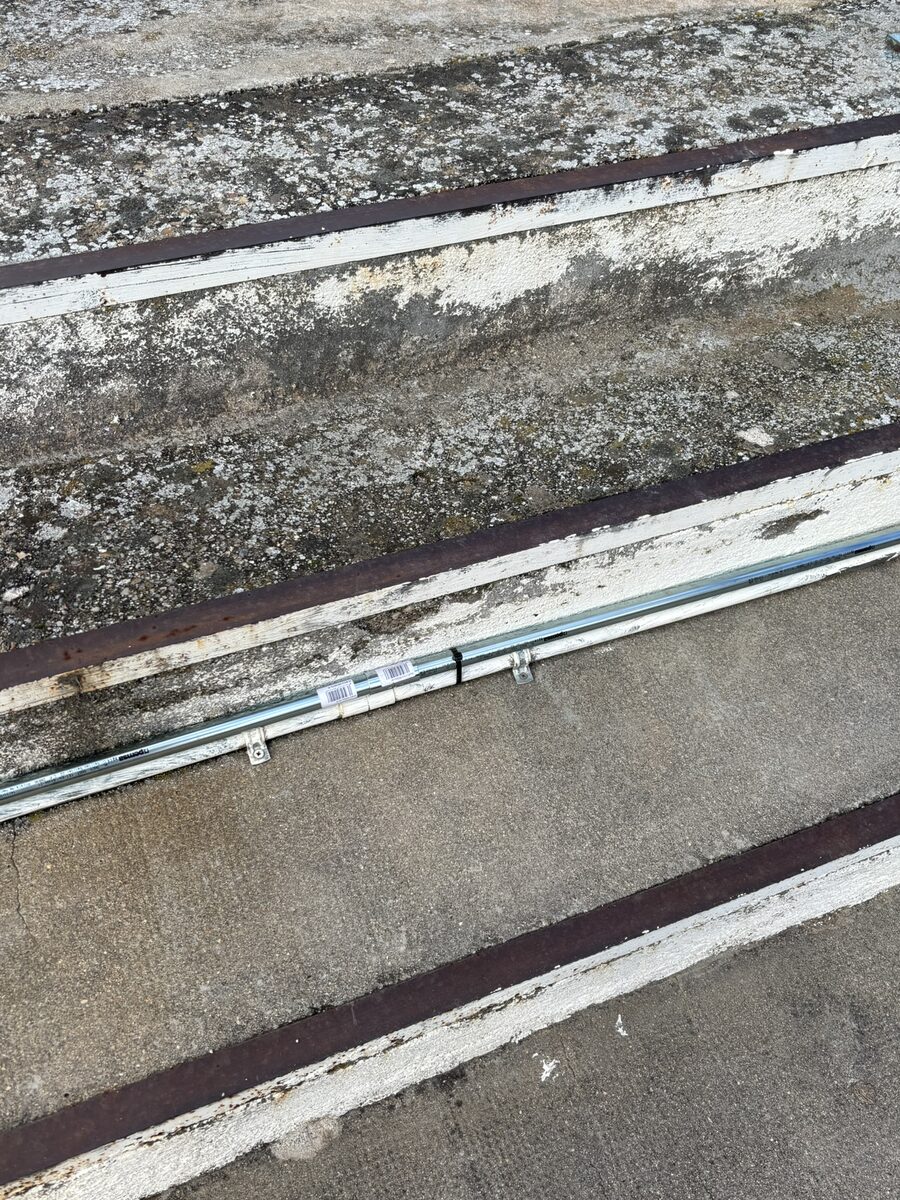

Conduit clamped along the terrace

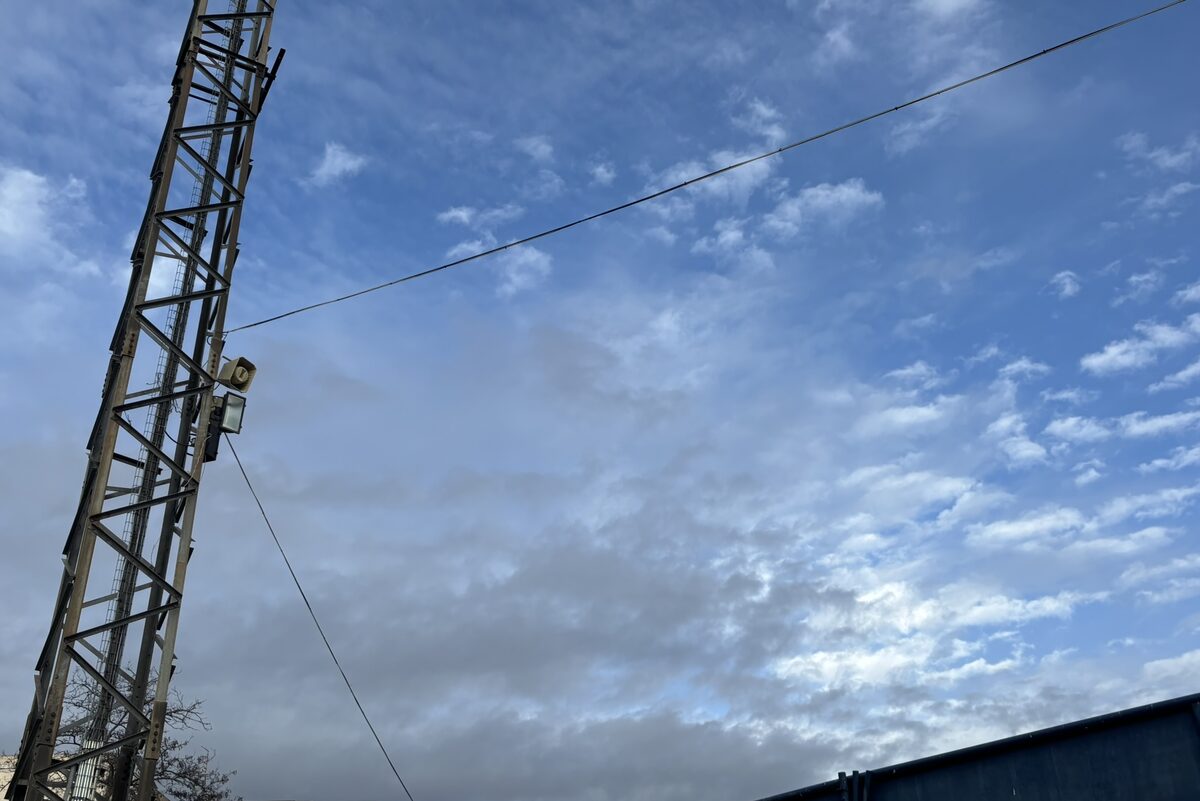

Aerial span arriving at a tower
